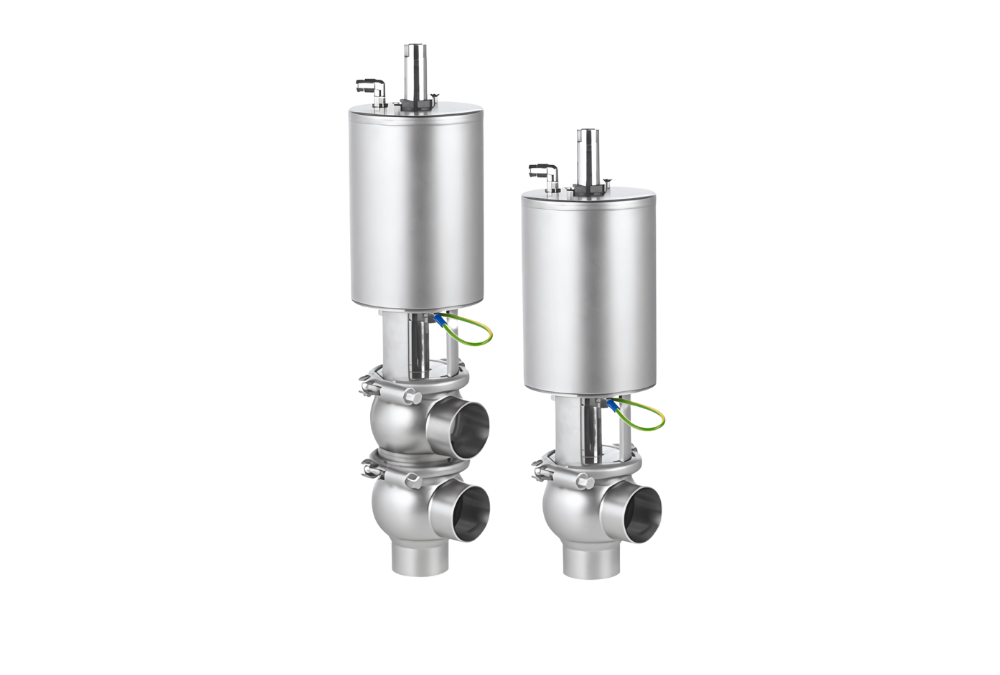

Unique Single Seat Valve ATEX (SSV)
Unique Single Seat Valve ATEX (SSV)
The Alfa Laval Unique SSV ATEX Standard pneumatic single-seat valve is versatile and dependable, with a single point of contact between the plug and seat to reduce contamination. Its tiny, flexible and sanitary design meets the highest process safety and hygiene standards.
Its ATEX certification ensures that it can be used in explosive atmospheres and it is built on the tried-and-true Unique SSV platform. The low number of moving parts ensures reliability and low maintenance costs. Its comprehensive range of supplementary features allows it to be adapted to the needs of certain procedures.
Hygienic Unique SSV Application
The Unique SSV ATEX Standard was established to ensure safe and uninterrupted production in a wide range of industries, including food, drink, brewing and dairy.
Benefit
- Unmatched dependability and versatility.
- Protects against leaks and bacterial contamination.
- Very durable and long-lasting.
- Cost-effective modular design.
- Adhering to ATEX, 3-A, and sanitary requirements of use
Related Industries
- Beverage Processing
- Home care
- Personal Care
TECHNICAL DATA
Temperature
Temperature range: -10 °C to +135 °C (EPDM)
Ambient temperature: 10 °C to +40 °C
Pressure
Max. product pressure: 1000 kPa (10 bar)
Min. product pressure: Full vacuum
Air pressure, actuator: 500 to 700 kPa (5 to 7 bar)
ATEX
Classification: II 2 G D c T41
PHYSICAL DATA
Materials – valve/actuator
- Product wetted steel parts: 1.4404 (316L)
- Other steel parts: 1.4301 (304)
- External surface finish: Semi-bright (blasted)
- Internal surface finish: Bright (polished), Ra < 0.8 µm)
- Product wetted seals: EPDM
- Other seals: NBR
- Actuator stem: PAGG PAGI/GT, MH, 14-250, CF40
- Spring: Coated steel
Standard design
Alfa Laval Unique SSV ATEX offers one, two or three body options. The valve bodies, plugs, sealing, actuators and clamp rings are all easy to configure. The valve contains two to four functioning ports that can serve as shutoffs and it can be configured as a changeover valve with up to six ports. The valve seat, which joins the two bodies in the changeover version, is built to ensure flexibility. The valve seal’s preset compression design increases their durability and service life. The actuator is designed with clamp rings, and a yoke links it to the valve body. The Alfa Laval Anytime configurator allows you to simply modify it to practically any process need.
Working principle
The Alfa Laval Unique SSV ATEX Standard is a clean, remotely operated, single-seat pneumatic valve designed for use in sanitary environments. The actuator protects process lines from pressure peaks, ensuring smooth operation. An Intrinsically Safe Alfa Laval ThinkTop® Basic can control the valve.
