Standard Cartridge

ISC2 standard cartridge seals are designed for general purpose applications on ANSI, ISO, JIS and API 682 process pumps serving chemical processing, petrochemical, biofuel, corn processing, pulp and paper, oil and refining, power, water and wastewater, mining and other industries.

Introduction Features Literature

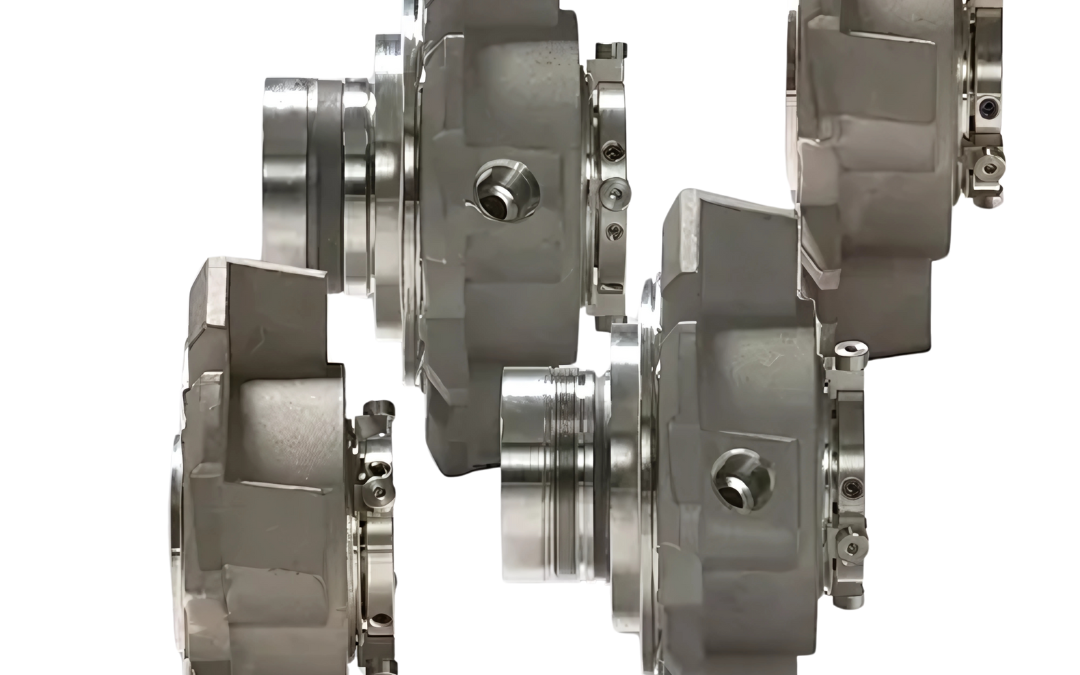

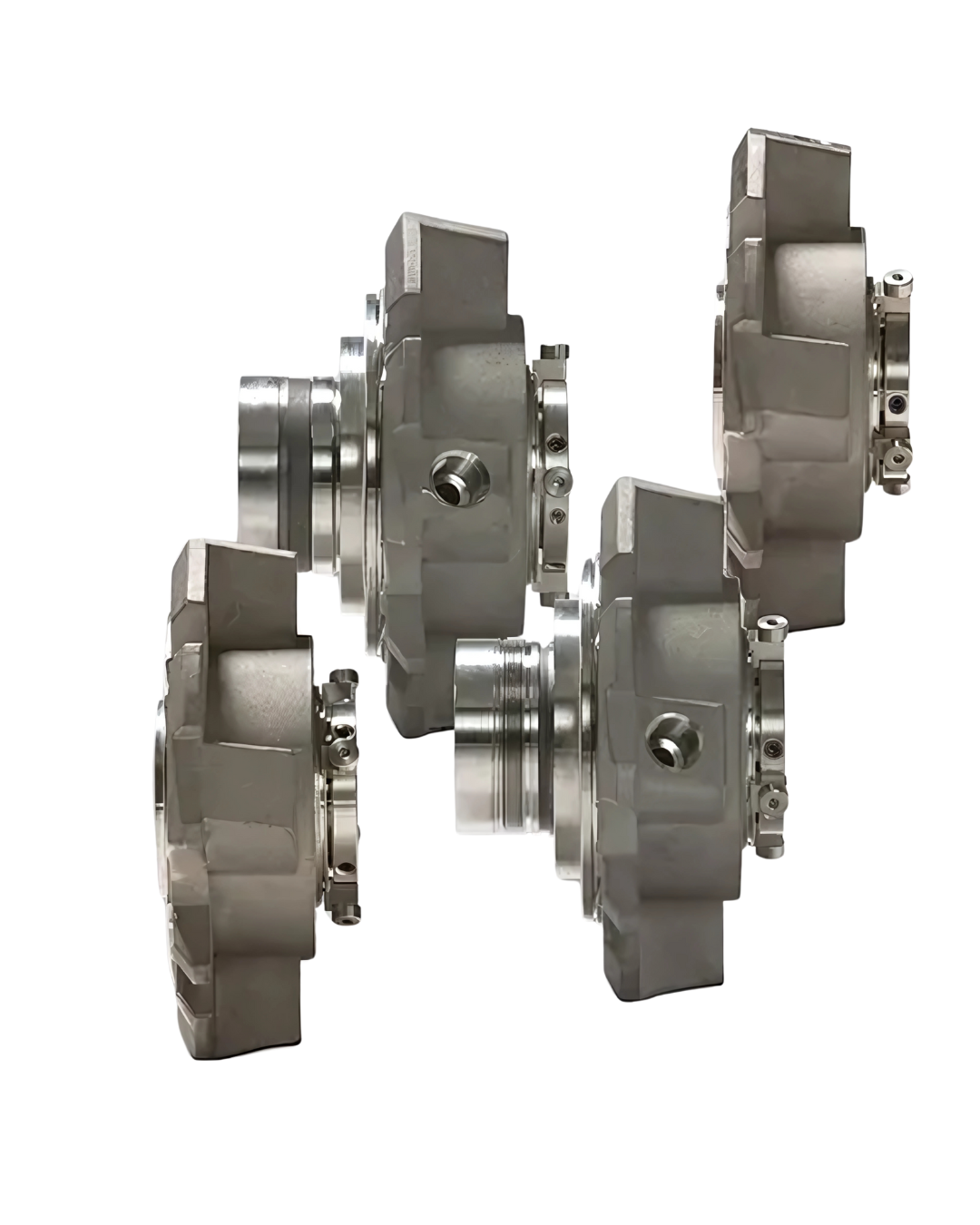

ISC2 Series       ISC2 Series

 ISC2 standard cartridge seals are designed for general purpose applications on ANSI, ISO, JIS and API 682 process pumps serving chemical processing, petrochemical, biofuel, corn processing, pulp and paper, oil and refining, power, water and wastewater, mining and other industries.

Brand Flowserve
Description Newest Innovative Standard Cartridge Seals



  • Applications:
    Pipeline, Power Generation, Pulp and Paper, Ag-Chem, Synthetics, Bioprocessing, Tank Farm Transfer, Chemical Processing, Toxic Services, Chemical Transfer, Waste Water, Condensate, Water, Fine Chemicals, General Purpose, Hydrocarbon Processing, Inorganic Chemicals, Light Oils, Light Slurries, Organic Chemicals, Petrochemical Processing
  • Industries:
    Agriculture, Chemical and Liquor, Logistics and Tank Farm, Paper Stock, Pharmaceuticals, Products Pipeline, General Industries
  • Standards:
    API682, ASME (ANSI), DIN24960, ISO

The ISC2 Series is a complete family of mechanical seals that provide exceptional reliability and standardization over the widest variety of industrial applications and equipment. ISC2 seals meet all major international standards and are designed for literally hundreds of pump models from global manufacturers. Facilities that standardize with ISC2 seals will immediately benefit from less inventory, greater flexibility, less downtime and longer seal life.

ISC2 seals work hard to eliminate the possible causes of leakage. Our thermal management technology for dry running tolerance, robust seal face drive mechanisms, high-efficiency barrier circulation, rigid setting devices and high quality materials all contribute to improve seal life even with multiple service conditions, off-design operation, and frequent starts and stops. ISC2 seals are capable of sustaining years of uninterrupted, long-term operation.

ISC2 Dual Metal Bellows Repair Instructions

FIS194eng_ISC2_BB_Repair

Repair instructions for ISC2 dual metal bellows

ISC2 Single Pusher Repair Instructions

FIS193eng_ISC2_BX_Repair
Repair instructions for ISC2 single pusher

ISC2 Dual Pusher Repair Instructions

FIS192eng_ISC2_PP_Repair

Repair instructions for ISC2 dual pusher

ISC2 Single Metal Bellows Repair Instructions

FIS191eng_ISC2_PX_repair

Repair instructions for ISC2 single metal bellows

ISC2-Serie

FIS190ger_ISC2_Install_A5

Innovative Standard-Cartridgedichtung für allgemeine Anwendungen. Montageanleitung für Maschinenbauteile.

Gamme ISC2

FIS190fre_ISC2_Install_A5
Garniture cartouche standard innovante et polyvalente. Instructions de montage pour composants de machine.

Serie ISC2

FIS190spa_ISC2_Install_A5

Cierre de Cartucho Estándar Innovador diseñado para ANSI y aplicaciones de uso general con una máxima versatilidad entre diseños. Instrucciones de instalación para piezas de máquina.

Serie ISC2

FIS190ita_ISC2_A5_Install

Tenuta Innovativa Standard a Cartuccia progettata per applicazioni generali. Istruzioni di montaggio per parti di macchina.

ISC2 Series

FIS190multi_ISC2_Install_A5

Innovative Standard Cartridge seal designed for general purpose applications. Installation Instructions for machinery components

ISC2 Series Brochure

FSD243eng_ISC2_Series_Broch_Ltr

A complete family of mechanical seals that provide exceptional reliability and standardization over the widest variety of industrial applications and equipment.

ISC2 Series Installation Instruction

FIS190eng_ISC2_Install_Ltr

Innovative Standard Cartridge seal designed for general purpose applications.
