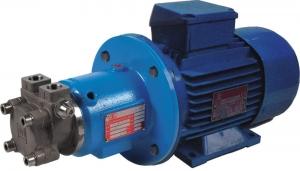

VANEMAG
Pump construction, operating limits and performances
Close-coupled drivers are conventional drivers mounted directly to pumps frame. No base, coupling or guards are required for this mounting style.
- Connections: Threaded BSP (GAS) & NPT
- Max viscosity 10000 cSt
- Max system pressure: 50 bar (standard), 150 bar (HP Version).
Higher pressure version available on request.
- Flow up to 3000 l/h
- Head up to 14 bar.
- Temperature range from -147 °F (-100 °C) to +392°F (+200 °C)
- Electric motors: from 0,25 up to 2,2 kW
Sealless Sliding Vane pump with permanent magnet drive system, no mechanical seal.
The separation of liquid chamber/atmosphere by means of an isolation shell is the best solution to pump aggressive, explosive and toxic liquids, hydrocarbons, heat transfer liquids and liquids difficult to seal.
Suitable for a variety of applications, including reverse osmosis systems, cooling circulation and sampling application in refi nery. A wide range of pumps covers the different performances.Epoxy primer and polyacrylic enamel water-based painting for the best quality resistance linked to the environmental respect.The integrated by-pass allowes to adjust the differential pressure, it is possible to set-up the preferred limit to avoid over-pressure conditions. Pump port on the top for a very compact design.The sealing system with O-Rings prevents from leaking in the atmosphere different
materials available:- VITON®
– EPDM
– FEP
materials available:- VITON®
– EPDM
– FEP
CF8M Pump Casing & Cover High quality casting components. Other materials :
– Hastelloy ®C276,
– Incoloy®825,
– Incoloy®825,
– Duplex, or others available on request.QUICK CHANGE CARTRIDGE KIT
to guarantee an easy and fast maintenance.
– Standard Version: CARTRIDGE PHENOLIC GRAPHITE, ROTOR SS316.
– “1 SiC” Version (For low viscosity or for chemical resistance):
CARTRIDGE METALLIZED CARBON, ROTOR SS316 W/SiC BEARINGS.
– “2 SiC” Version (extreme differential pressure): CARTRIDGE METALLIZED CARBON or PHENOLIC GRAPHITE, ROTOR SS316 W/SiC BEARINGS VS SiC STATIONARY BEARINGS.
The rear shell is made of one single piece, no welding, ellipsoidal profile that has been studied to withstand higher pressures than the traditional one. Available two versions, AISI 316 the standard construction, and Hastelloy®C276 for high pressure version – providing a safe and efficient solution – max system pressure 150 bar.
Titanium Alloy is an upgrade when higher pressure ratings and increased effi ciency are required.
High power synchronous magnetic coupling designed by our Technical Office and with rare earth magnetic elements mechanically locked.
The high performance magnets can operate at liquid temperature of up to 392 °F (200 °C).Connections available:
Threaded BSP(GAS) or NPT.
Threaded BSP(GAS) or NPT.
Assembling foot allowes to have the two versions available for motor B3B5 or B5.
Technical Characteristics I Technical Characteristics II Operation ManualBrochurePerformance Curves

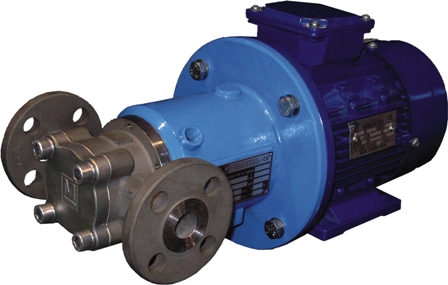

V IN LINE
Pump construction, operating limits and performances
Close-coupled drivers are conventional drivers mounted directly to pumps frame. No base, coupling or guards are required for this mounting style.
• Connections: Threaded BSP (GAS) & NPT, Flange rating per
DIN Norms Class PN25, ANSI B16.5 Class 150# and 300#
– Max viscosity 10000cSt
– Max system pressure:
50 bar (standard),
150 bar (HP Version),
Higher pressure version available on request.
– Flow up to 3000 l/h
– Head up to 14 bar
– Temperature range:
– Flow up to 3000 l/h
– Head up to 14 bar
– Temperature range:
from -147 °F (-100 °C) to +392 °F (+200°C)
– Electric motors from 0,25 up to 2,2 Kw
– Available ATEX II – / 2G cbk II C T2 – T5
– Available ATEX II – / 2G cbk II C T2 – T5
Sealless Sliding Vane pump with permanent magnet drive system, no mechanical seal.
The separation of liquid chamber/atmosphere by means of an isolation shell is the best solution to pump aggressive, explosive and toxic liquids, hydrocarbons, heat transfer liquids and liquids difficult to seal.
Suitable for a variety of applications, including reverse osmosis systems, cooling circulation and sampling application in refi nery.
A wide range of pumps covers the different performances.
Epoxy primer and polyacrylic enamel water-based painting for the best quality resistance linked to the environmental respect.
The sealing system with O-Rings prevents product from leaking in the atmosphere.
Different materials available:
– VITON®
– EPDM
– FEPCF8M Pump Casing & Cover High quality casting components. Other materials:
– EPDM
– FEPCF8M Pump Casing & Cover High quality casting components. Other materials:
– Hastelloy®C276,
– Incoloy®825,
– Incoloy®825,
– Duplex, or others available
on request.QUICK CHANGE CARTRIDGE KIT
on request.QUICK CHANGE CARTRIDGE KIT
to guarantee an easy and fast maintenance.
– STANDARD VERSION: CARTRIDGE PHENOLIC GRAPHITE, ROTOR SS316.
– “1 SiC” VERSION (For low viscosity or for chemical resistance):
CARTRIDGE METALLIZED CARBON, ROTOR SS316 W/SiC BEARINGS.
– “2 SiC” VERSION (extreme differential pressure): CARTRIDGE
METALLIZED CARBON or PHENOLIC GRAPHITE, ROTOR SS316
W/SiC BEARINGS VS SiC STATIONARY BEARINGS.
The rear shell is made of one single piece, no welding, ellipsoidal profile that has been studied to withstand higher pressures than the traditional one
Available two versions, AISI 316 the standard construction, and Hastelloy®C276 for high pressure version providing a safe and efficient solution system pressure max 150 bar. Titanium Alloy is an upgrade when higher pressure ratings and increased efficiency are required.
High power synchronous magnetic coupling designed by our Technical Office and with rare earth magnetic elements mechanically locked.
The high performance magnets can operate at liquid temperature of up to 392°F (200 °C).Many different connections are available: Threaded BSP(GAS) or NPT.
DIN Flanges PN25, ANSI Class 150 and 300 lbs.
Assembling foot permit to have the two versions available for motor B3B5 or B5.
DIN Flanges PN25, ANSI Class 150 and 300 lbs.
Assembling foot permit to have the two versions available for motor B3B5 or B5.
Technical Characteristics I Technical Characteristics II Operation ManualBrochurePerformance Curves
V MODULARPump construction, operating limits and performances
Close-coupled confi guration allows conventional drivers to be mounted directly to pump frame. No base, coupling or guards are required for this mounting.
Connections:
Threaded BSP (GAS) & NPT, Flange rating per DIN Norms Class PN25, ANSI B16.5 Class 150 and 300
– Max viscosity: 10000 cSt
-Max system pressure:
-Max system pressure:
50 bar (standard),
150 bar (HP Version),
Higher pressure version available on request.
– Flow up: to 2000 l/h
– Head up: to 48 bar
-Temperature range:
– Flow up: to 2000 l/h
– Head up: to 48 bar
-Temperature range:
from -147 °F (-100°C)
to +392 °F (+200 °C)
– Electric motors: up to 5,5 kW
– Available ATEX II – / 2G cbk II C T2 – T5
– Electric motors: up to 5,5 kW
– Available ATEX II – / 2G cbk II C T2 – T5
Sealless sliding vane multistage modular pump with permanent magnet drive system, no mechanical seal.
A modular Range of pumps covers the different performances. The best solution for sampling and low viscosity liquids.
The separation of liquid chamber/ atmosphere by means of an isolation shell is the best solution to pump aggressive, explosive and toxic liquids, hydrocarbons, heat transfer liquids and liquids difficult to seal. The hermetic sealless is the best solution for the chemical, petrochemical and refinery industry.
Epoxy primer and polyacrylic enamel water-based painting for the best quality resistance linked to environmental respect.
Different connections are available:
Threaded BSP(GAS) or NPT. DIN Flanges PN25, PN40, ANSI Class 150, 300 and 600 lbs. Mounting feet allows to have B3B5 or B5 motor version available.
Between the two stages there is an elastic coupling to absorb unexpected shocks.
This device will also guarantee a longer life for the cartridges.
The two Stainless Steel components are achieved by the CNC machining to have the best dimensional accuracy, while the material for the elastomer component used is selected according to the application.
Pump Casing & Cover are made in Stainless Steel 316 solid bar to obtain high quality components within strict tolerances.
A special HP Lip Seal is used to contain the pressure between the two stages.
The sealing system with fl at gaskets prevents from leaking to the atmosphere – different materials available:
– Asbestos free
– PTFE (standard)
– Graphoil
– GYLON®
The rear shell is made of one single piece, no welding, ellipsoidal profile that has been studied to withstand higher pressures than the traditional one.
Two versions available, AISI 316 as standard construction, and Hastelloy® C276 for high pressure version – providing a safe and
efficient solution – system pressure max 150bar.
Titanium Alloy is an upgrade when higher pressure ratings and increased efficiency are required.
High power synchronous magnetic coupling designed by our Technical Office and with rare earth magnetic elements mechanically locked.
High performance magnets can operate at liquid temperature of up to 392 °F (200°C).
QUICK CHANGE CARTRIDGE KIT
to guarantee an easy and fast maintenance.
STANDARD VERSION “1 SiC” (For low viscosity): CARTRIDGE
METALLIZED CARBON, ROTOR Duplex 22% Chrome W/SiC BEARINGS
Technical Characteristics I Technical Characteristics II Operation ManualBrochurePerformance Curves
CV MAG-MPump construction, operating limits and performances
Close-coupled drivers are conventional drivers mounted directly to pumps frame. No base, coupling or
guards are required for this mounting style.
Connections:
Threaded BSP (GAS) & NPT.
Flange rating per DIN Norms Class PN16 – 40
Flange rating per ANSI B16.5 Class 150 and 300 lbs
Operating Limits
– Max viscosity: 10000 cSt
– Max system pressure:
50 bar (standard),
150 bar (HP Version),
Higher pressure version available on request.
– Flow up: to 3000 l/h
– Head up: to 12 bar
– Temperature range:
– Flow up: to 3000 l/h
– Head up: to 12 bar
– Temperature range:
from -147°F (-100 °C)
to +392 °F (+200 °C)
– Electric motors:
– Electric motors:
from 0,25 up to 2,2 Kw
– Available ATEX II – / 2G cbk II C T2- T
– Available ATEX II – / 2G cbk II C T2- T
Sealless low NPHS sliding vane pump with permanent magnet drive system, no mechanical seal.
The separation of liquid chamber/atmosphere by means of an isolation shell is the best solution to pump aggressive, explosive and toxic liquids, hydrocarbons, heat transfer liquids and liquids diffi cult to seal.
The hermetic sealless is the best solution for the chemical, pharmaceutical and petrochemical industry.
AISI 316L Pump Casing & Cover achieved from solid.
Other materials:
– Hastelloy® C276
– Incoloy® 825
– Duplex
– Others available on request
Sealing system with fl at gaskets prevents product from leaking to the atmosphere – different materials available:
– Asbestos free
– PTFE (standard)
– Graphoil
– GYLON®
Standard connections available:
DIN Flanges PN25, ANSI Class 150 and 300lbs. Others standard available on request.
The rear shell is made of one single piece, no welding, ellipsoidal profile that has been studied to withstand higher pressures than the traditional one.
Available two versions, AISI 316 the standard construction, and Hastelloy®C276 for high pressure version – providing a safe and efficient solution – system pressure max 150 bar.
Titanium Alloy is an upgrade when higher pressure ratings and increased efficiency are required.
Epoxy primer and polyacrylic enamel water-based painting for the best quality resistance linked to the environmental respect.
High power synchronous magnetic coupling designed by our Technical Office and with rare earth magnetic elements mechanically locked.
The high performance magnets can operate at liquid temperature of up to 392 °F (200 °C).
STANDARD VERSION: CARTRIDGE PHENOLIC GRAPHITE,
ROTOR SS316.
“1 SiC” VERSION (for low viscosity or for chemical resistance):
CARTRIDGE ANTIMONY CARBON or PHENOLIC GRAPHITE,
ROTOR SS316 W/SiC BEARINGS.
“2 SiC” VERSION (extreme differential pressure): CARTRIDGE
ANTIMONY CARBON or PHENOLIC GRAPHITE, ROTOR SS316
W/SiC BEARINGS VS SiC STATIONARY BEARINGS.
QUICK CHANGE CARTRIDGE KIT
to guarantee an easy and fast maintenance.
