Series LEM, LEL

Liquid ring vacuum pumps of the series LEM/LEL are single-stage displacement pumps of uncomplicated and robust construction with the following particular features like non-polluting due to nearly isothermal compression, oil-free (no lubrication in the working chamber), handling of nearly all gases and vapours, small quantities of entrained liquid can be handled, easy maintenance and reliable operation, low noise and nearly free from vibration, protection against cavitation as standard, incorporated dirt drain, incorporated central drain and no metallic contact of the rotating parts.

Applications:

Handling and exhausting of dry and humid gases. Entrained liquid can be handled during normal duty. The pumps are applied in all fields where a pressure of 33 to 900 mbar must be created by robust vacuum pumps.

Technical Data:

Suction volume flow: up to 470 m³/h

Suction pressure: 33 up to 1013 mbar
Shaft seal: mechanical seal, magnetic coupling
Materials: grey cast iron, stainless steel

• Catalogue – LEMB 26/51 threaded connection, 3 – 58 m³/h, 33 – 1013 mbar
• Catalogue – LEM/LELB 91/126/161 threaded connec., 24 – 195 m³/h, 33 – 1013 mbar
• Catalogue – LEM/LELB 91/126/161 flange connection, 24 – 195 m³/h, 33 – 1013 mbar
• Catalogue – LEM/LELB 251 flange connection, 100 – 280 m³/h, 33 – 1013 mbar
• Catalogue – LEMA 25/50 threaded connection, 4 – 60 m³/h, 33 – 1013 mbar
• Catalogue – LEM/LELA 90/125/150 flange connection, 32 – 170 m³/h, 33 – 1013 mbar
• Catalogue – LEM/LEL 250 flange connection, 100 – 280 m³/h, 33 – 1013 mbar
• Catalogue – LEM 90/125/150/250 flange, mag. drive, 20 – 200 m³/h, 33 – 1013 mbar
• Catalogue – LEMA 325/425 flange connection, 100 – 470 m³/h, 33 – 1013 mbar

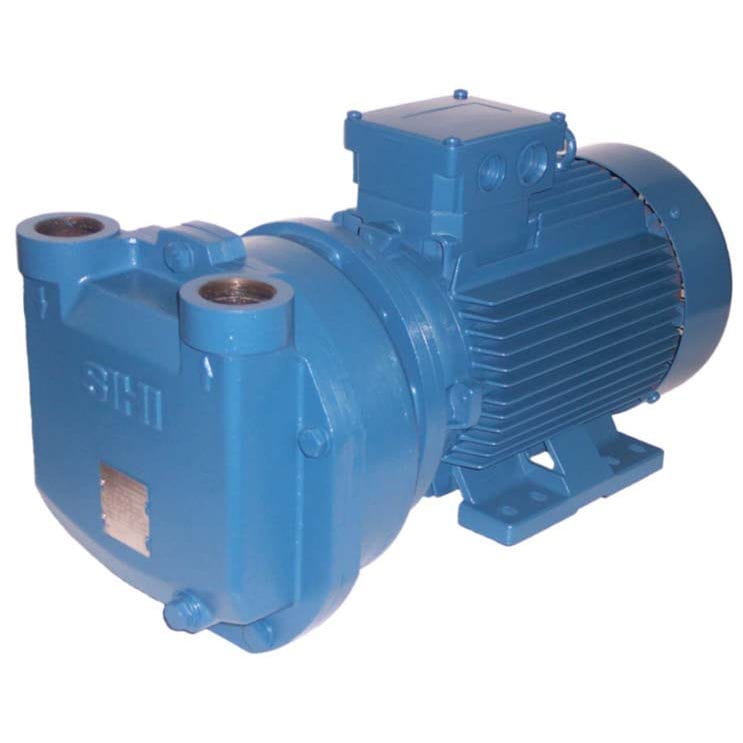

SIHIextruvac LEME

Liquid ring vacuum pumps of the series SIHIextruvac LEME are single-stage displacement pumps of uncomplicated and robust construction with the following particular features like non-polluting due to nearly isothermal compression, oil-free(no lubrication in the working chamber), handling of nearly all gases and vapours, small quantities of entrained liquid can be handled, easy maintenance and reliable operation, low noise and nearly free from vibration, protection against cavitation as standard, incorporated dirt drain, incorporated central drain and no metallic contact of the rotating parts.

Applications:

Handling and exhausting of dry and humid gases. Entrained liquid can be handled during normal duty. The pumps are applied in all fields where a pressure of 100 to 900 mbar must be created by robust vacuum pumps. These pumps are especially developed for the use in calibration tables, where the ability of additional water handling capability (max. 7 m³/h) is needed.

Technical Data:

Suction volume flow: up to 170 m³/h

Suction pressure: 100 up to 1013 mbar
Shaft seal: mechanical seal
Materials: grey cast iron

N/A. Please contact us for more information.

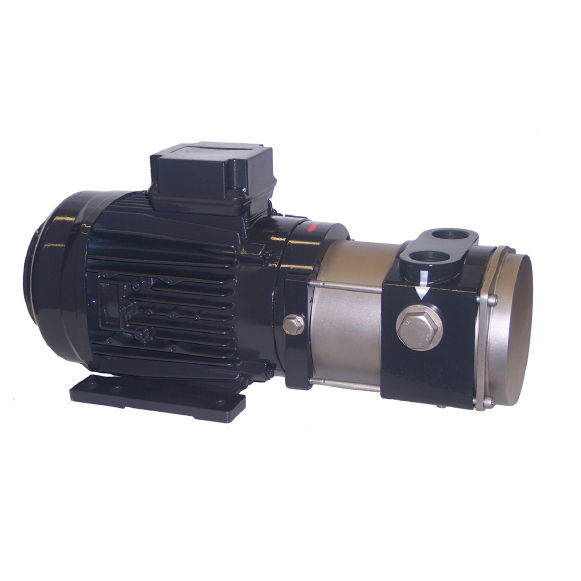

SIHIsterivac LEMS

Liquid ring vacuum pumps of the series LEMS are single-stage displacement pumpsof uncomplicated and robust construction with the following particular features like non-polluting due to nearly isothermal compression, oil-free (no lubrication in the working chamber), handling of nearly all gases and vapours, small quantities of entrained liquid can be handled, easy maintenance and reliable operation, low noise and nearly free from vibration, protection against cavitation as standard, incorporated dirt drain, incorporated central drain and no metallic contact of the rotating parts.

Applications:

Handling and exhausting of dry and humid gases. Entrained liquid can be handled during normal duty. The pumps are applied in all fields where a pressure of 33 to 900 mbar must be created by robust vacuum pumps. These pumps are especially developed for the use in sterilisation systems.

Technical Data:

Suction volume flow: up to 57 m³/h

Suction pressure: 33 up to 1013 mbar
Shaft seal: mechanical seal
Materials: grey cast iron

N/A. Please contact us for more information.
