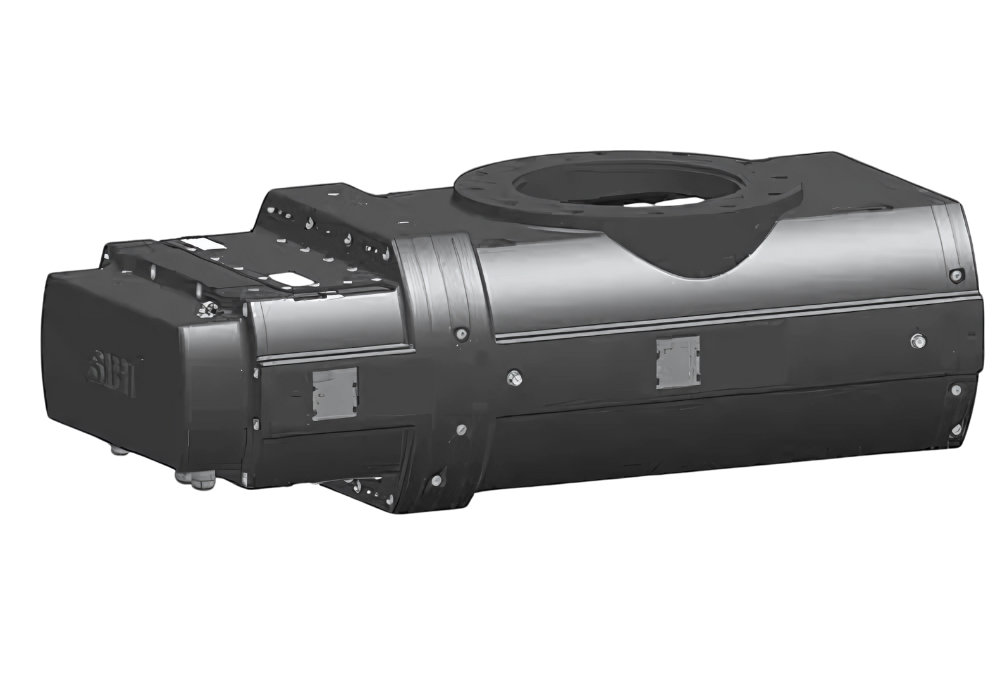

SIHI Boost Chemical PB Systems Dry Vacuum Pump

SIHI Boost Chemical PB Systems Dry Vacuum Pump is designed for pharmaceutical and chemical applications that require an explosion-proof design. SIHI Boost, designed as a dry screw vacuum booster, provides minimal power consumption and a small footprint while maintaining deep vacuum levels. It is quieter, safer and cleaner.

The rotors rotate five times quicker than standard gear. Contact-free, mechatronically synchronized moving parts help to reduce the need for oil-centric lubrication. Unlike typical Roots type booster pumps, SIHI Boost is designed for high discharge pressure, allowing for direct use with Liquid Ring Backing pumps, the most dependable vacuum pump for harsh process conditions.

This is an ideal solution for chemically related operations where liquids or solids are likely to carry over. This award-winning solution is ideal because it has excellent resistance to heat-accelerated deposition and can withstand corrosive gases and vapors.

The fundamental architecture provides a foundation for a diverse range of intelligent modules that can be used to meet remote monitoring, simple DCS integration and dynamic process requirements. The intelligent drive system, which is housed inside the pump, serves as an energy-efficient foundation for variable speed/pressure control while also performing continuous rotor diagnostics.

Innovative SIHI Boost Chemical PB Systems Dry Vacuum Pump for Industrial Applications

Benefit

• Use of Liquid Ring Vacuum Pumps as backing pump
  • Pumping sensitive media without any problems
  • High capacity for hydrogen
• High suction capacity even with smaller Backing Pump
  • Reduced total power consumption
  • Reduced costs for service and maintenance
  • Smaller footprint
• Total Oil free operation
  • There was no oil pollution during the process.
  • Electronic gear with pre-failure indicator

Specification

Ultimate pressure down to < 0.001 mbar ( 0.07 Torr) in  combination with a dry screw backing pump

Size range: Sizes from 3500 m³/h (2100 cfm) up to 8000 m³/h (4800 cfm) suction capacity

Industries

• Chemicals
  • Basic (Organic & Inorganic)
  • Specialty (Fine & Consumer)
  • Pharmaceutical
  • Petrochemicals
• General Industries
  • Food & Beverage

Reach out to our team today for more information about the SIHI Boost Chemical PB Systems Dry Vacuum Pump. We are here to assist with your specific needs.
