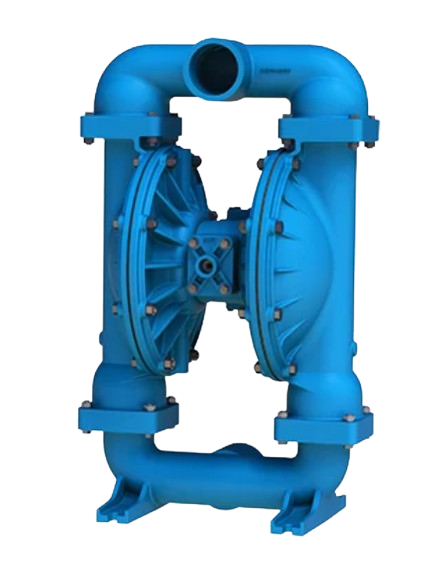

Sandpiper S30 Metallic AODD Pump (Standard Duty)
DescriptionFeaturesSpecifications

Sandpiper’s Metallic AODD Pump, Standard Duty AODD Pump, the S30

Sandpiper S30 Metallic AODD Pump (Standard Duty)

Sandpiper’s Standard Duty AODD Pump, the S30 is a part of Sandpiper’s Evolution Portfolio and is a metallic AODD Pump with the highest-performing and most efficient AODD Pump in its class. The pump is versatile and equipped to handle abrasive fluids and suspended solids. With class-leading max flow rate and the lowest air consumption available, the performance of this 3″ AODD Pump is unsurpassed. The durable, bolted construction of the S30 AODD Pump is superior to the clamp-band construction pump, providing excellent leak-free performance. Materials of construction options include: Aluminum, Cast Iron and Stainless Steel with Elastomer TPE (thermoplastic elastomers) and PTFE options in diaphragms and check valves.

The Standard Duty AODD Pump, the S30, has a few features that ensures it remains the best-in-class and one of the highest performing AODD Pump on the market. Amongst the features are:

  • Air Consumption: The S30 requires up to 56% less air to operate, reducing the load on your compressed air system and lowering operating costs.
  • Air Economy: Sandpiper’s metallic standard-duty pumps provide up to 2.5 times more gallons out for every cubic foot of air supplied.
  • Serviceability: The air distribution system (ADS) is one of the most frequently serviced parts of any AODD Pump. Only Sandpiper’s ESADS+ feature allows access to the complete ADS without removing the pump from service. Repair or clean in five minutes (versus 55 minutes for competitors)
  • Simplicity: Sandpiper’s original ADS is fully interchangeable, repairable and inline-serviceable. Other manufacturers frequently change ADS designs, creating issues with interchangeability, obsolete inventory and increased cost of ownership.
Port Size 3″ NPT or 3″ BSP (Tapered)

3″ ANSI Flange or 3″ DIN Flange

Capacity  0 to 285 gpm (1,078 lpm)
Air Distribution Valve  No-lube, no-stall design
Solids-Handling Up to .38″ (9.56 mm)
Heads Up To 125 psi or 289 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke  .94 gallons (3.56 liters)
Max Operating Pressure  125 psi (8.6 bar)
Shipping Weight  Aluminum:

116 lbs (53 kg)

Cast Iron:

215 lbs (98 kg)

Stainless Steel:

194 lbs (87 kg)
