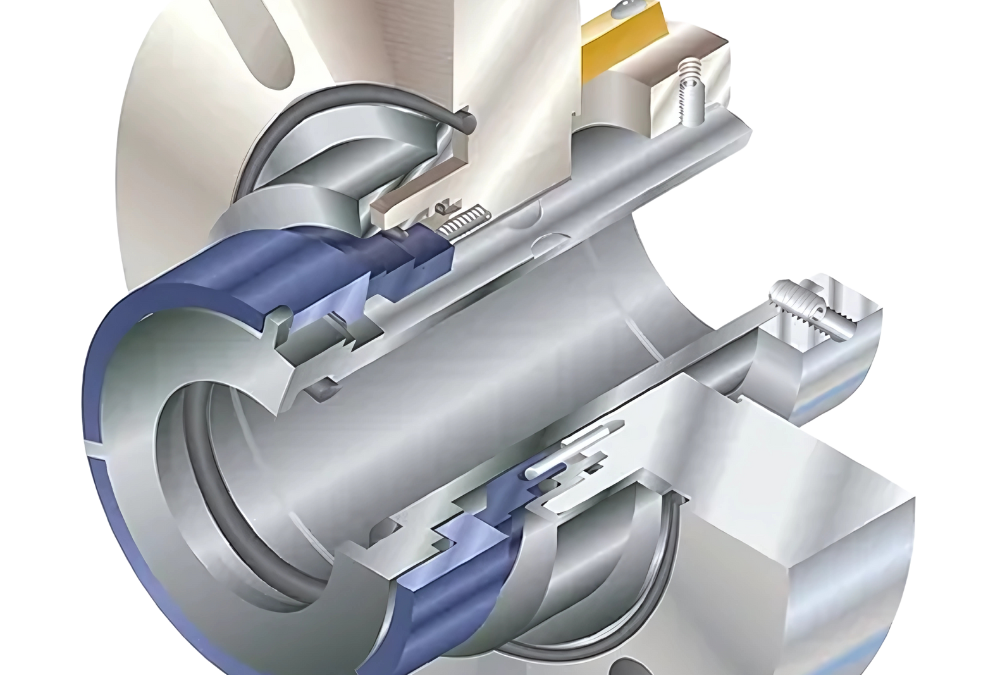

PL Series Industrial Process Seal

The PL Series seals are pre-designed single (PL-100) and dual (PL-200) cartridge seals with wetted parts that are not metal. They are less expensive than high alloy seals and can be used in ASME and ISO pumps for acidic situations.

PL Series Industrial Process Seal for Power, Water and Chemical Applications

Benefit

1. A particular carbon fiber-reinforced PTFE construction provides increased reliability by resisting corrosion and having superior mechanical properties to maintain seal integrity.
2. Longer Service Springs and pins separate from the product ensure life and MTBF by preventing them from becoming blocked and damaged by chemicals.
3. The carbon fiber PTFE liner that protects the 316 SS gland can be replaced which can lowering the cost of maintenance.
4. An inexpensive alternative to single or double high-alloy metal seals.

Specification

• Press: Vacuum to 10.3 bar (150 psi)
• Temp: -18°C to 150°C (0°F to 300°F)
• Speeds: to 23 m/s (60 fps)
• Sizes: 35 to 53 mm (1.375 to 2.750 in)

Related Industries

• Power

Nuclear, Conventional Steam, Combined Cycle, Concentrated Solar Power (CSP), Biomass & MSW, Geothermal

• Chemicals

Basic (Organic & Inorganic), Specialty (Fine & Consumer)Biofuels, Pharmaceutical

• Water

Water Management, Wastewater, Agriculture & Irrigation, Flood Control System

• Oil & Gas

Upstream Exploration & Production, Downstream Processing

• General Industries

Pulp & Paper, Steel & Primary Metals, Food & Beverage, Corn Wet Milling & Ethanol, Other Industries

• Mining

Flowserve Seal Product Portfolio

Mechanical Seal Quick Ship Flyer

Upgrade your operations with the Flowserve PL Series industrial process seal. Reach out to us today to see how this seal can enhance your system’s reliability.
