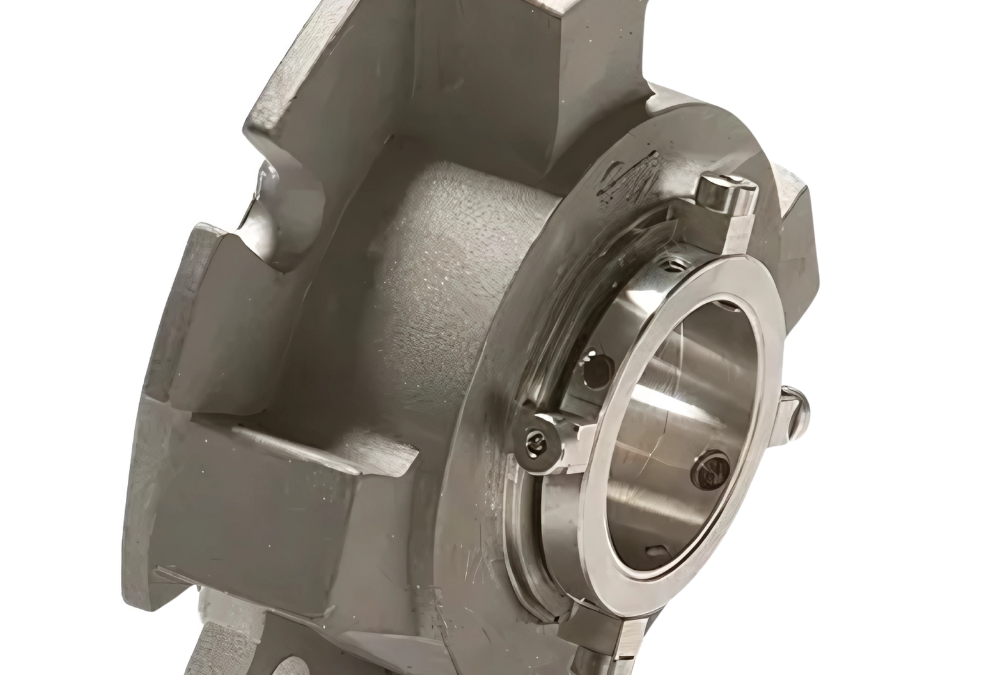

ISC2 PX 61 Standard Cartridge Seal

NSF International has rigorously tested and evaluated the ISC2 PX 61 cartridge seal, and it is NSF/ANSI/CAN 61 & 372 certified for drinking water applications from source to tap. The NSF certifications include all wetted components of the seal and show how ISC2-PX-61 seals exceed regulatory criteria for drinking water quality, giving municipalities confidence in seal selection and operation.

ISC2 PX 61 Standard Cartridge Seal Application

Benefit

• Improve water quality with NSF/ANSI/CAN 61 & 372 certified products that meet stringent industry and regulatory criteria.
• Patented thermal management technique improves dry run and cavitation tolerance.
• Robust drive mechanism delivers high torque loads with little seal face stress for maximum durability.
• Fixed carbon bushing on the atmospheric side improves safety and reliability.

Specification

Standards: NSF/ANSI/CAN 61 & 372

Size Range: 25 to 200 mm (1.000 to 8.000 inch)

Operating Parameters

• Pressure: Up to 20.6 bar (300 psi)
• Temperature: -40 to 204°C (400°F)
• Speed: up to 23 m/s (75 fps)

Related Industries

• Water
  • Water Management
  • Wastewater
  • Agriculture & Irrigation
  • Flood Control System
  • Desalination

• ISC2-PX-61 NSF/ANSI/CAN 61 Certified Standard Cartridge Seals for Drinking Water Applications
•  ISC2 Series Cartridge Seal – Brochure
•  ISC2 Series Cartridge Seals – Installation Instructions
• ISC2 Single Pusher Seal – Repair Instructions

Optimize your sealing systems with the ISC2 PX 61. Contact us to discuss how this innovative cartridge seal can improve your operations.
