SUBM Submersible Pump with H2O-Filled Motor

Whether you require a single-stage or multi-stage design, the Byron Jackson H2O deep well pump comes with direct-coupled water-filled motors that can run constantly. Hydraulics, materials and options are carefully selected to deliver the most value for the applications that require them.

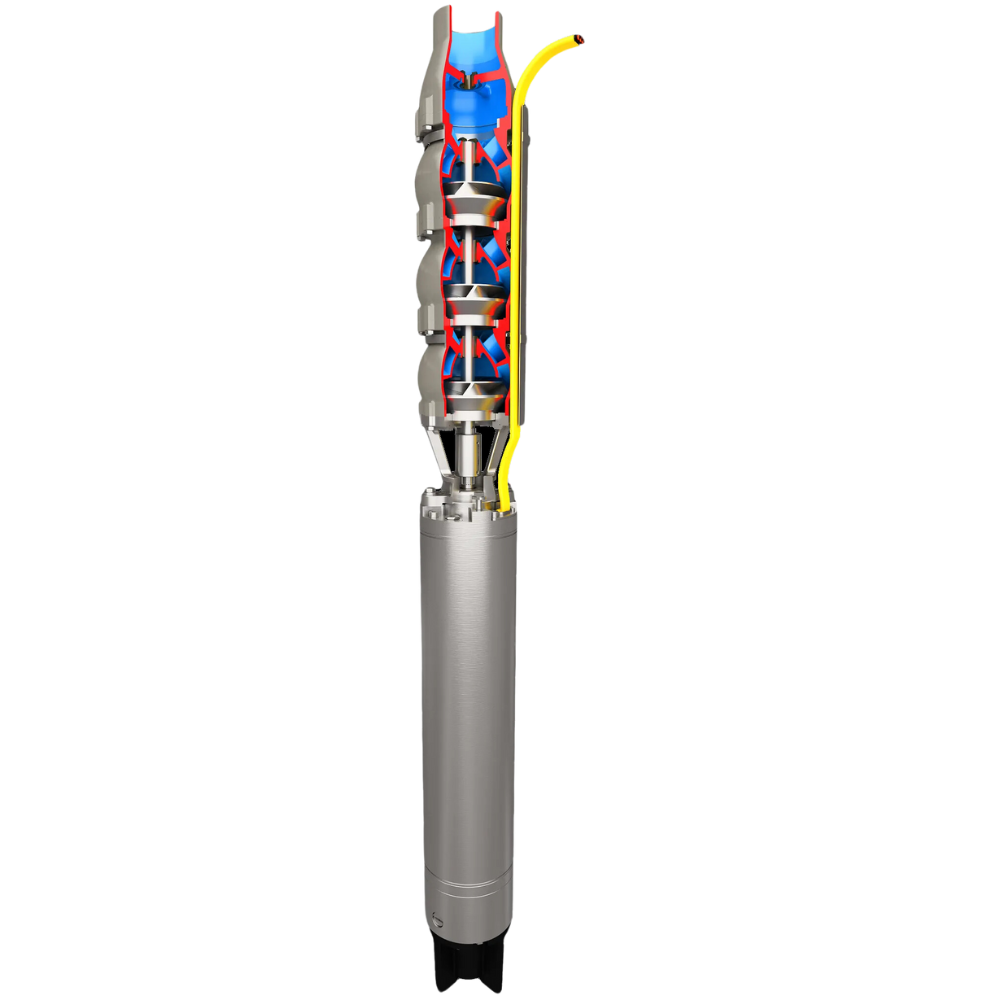

Byron Jackson SUBM submersible pump with H2O water-filled motor for efficient deep well applications

Flowserve’s SUBM suite is one of the most comprehensive deep-well submersible pump offerings in the world. Flowserve offers a wide range of hydraulic pumps and submersible motors that can be filled with oil or water. This allows you to select the pumping system that best meets your requirements in terms of application, specs and lifetime cost.

SUBM Submersible Pump with H2O-Filled Motor Typical Applications

• Potable water
• Storage cavern
• Seawater (fire protection, ballast)
• Mine dewatering
• Pressure boosting (fountains)
• Geothermal
• Water injection
• Pipelines

Related Industries

• Power
• Chemicals
• Water
  • Water Management
  • Wastewater
  • Agriculture & Irrigation
  • Flood Control System
• Oil & Gas
  • Upstream Exploration & Production
  • Downstream Processing
• General Industries
  • Other Industries

Specification

• Flows to 4500 m³/h (19800 gpm)
• Heads to 800 m (2625 ft)
• Motor sizes to 2237 kW (3000 hp)

Size Range:

• Pump sizes from 150 mm (6 in) to 762 mm (30 in), motor sizes from 150 mm (6 in) to 762 mm (30 in)
• Motor power up to 2237 kW (3000 hp) 2-8 pole designs, 50 & 60 Hz
• Voltage up to 6600V

Configuration

• Deep Wells Design
  • Conventional layout for use in offshore or deep well applications (pump with motor mounted underneath)
• Bottom Intake Design
  • Unit for low fluid level applications with intake at the bottom (motor above pump)
• High Temperature Motor Design
• This unique motor can withstand temperatures up to 95 degrees Celsius, making it ideal for use with fluids that are hotter than the industry standard of 30 degrees Celsius.

Submersible Incline Pumps Bulletin

Byron Jackson H2O Submersible Pumps and Motors (Water Filled) User Instructions

Enhance efficiency with the Byron Jackson SUBM Submersible Pump with H2O-Filled Motor. Reach out to us immediately for further information.
