Bertoli, Michelangelo Series, Versatile Homogenizer, HA-30

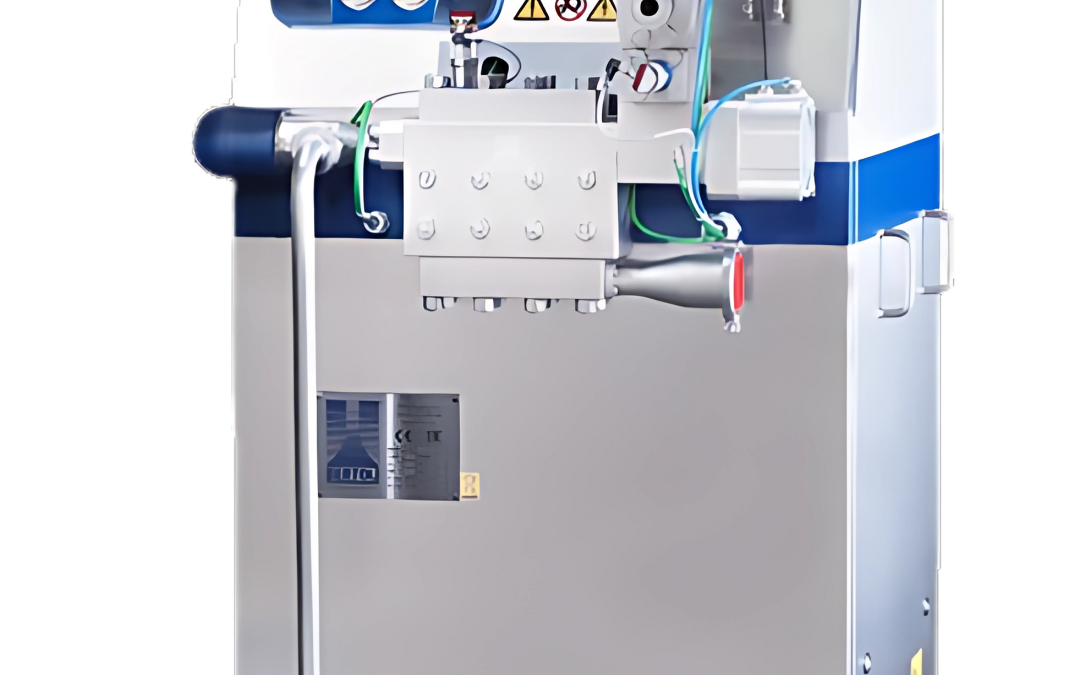

Bertoli Homogenizer Michelangelo Series, the HA-30

The Bertoli Homogenizers and High Pressure Pumps from the Michelangelo Series are a sanitary execution focused design making it highly suitable for food processing. As it has been designed specifically for highly sanitary industries, all parts of the homogenizers are constructed of materials that are compliant with the strict standards of the food processing and pharmaceutical international standards.

The Bertoli Homogenizer, Michelangelo Series, the HA-30, are high-pressure pumps that can reach industrial productions up to 22,000 l/h and maximum working capacities up to 1,500 bar with its Starline Plus edition. The design is highly focused on its capabilities to be highly reliable and easily maintained. The homogenizer is highly suitable for the chemical, cosmetic, dairy, pharmaceutical and the food and beverage industrial applications. With its closed-cabinet design, the homogenizer provides excellent soundproofing, allowing a quiet operation. This high-pressure homogenizer comes with poppet valves, allowing for both high and low-viscous products to emulsify and homogenize efficiently with minimal maintenance required.

The HA-30, Michelangelo Series, comes with a series of features that highlights the functionality of the homogenizer in its industrial applications;

  • Forged block made of Duplex, SAF2205, 3 Plungers made of AISI360L
  • Direct transmission system with trapezoidal belts and pulleys
  • Homogenizing group with hydro-pnuematic adjustment of the pressure for stability and homogenizing valves in stellite™
  • Flat valve seat and poppet/ball valves made of stellite 20™
  • Digital pressure transmitter, 4-20 mA, with ceramic membrane
  • Overpressure valve, flow switch alarm
  • Splash lubrication system, die cast aluminum crankcase, nitrurized crankshaft
  • Terminal box and control panel for local/remote control
  • Easy opening panels

The HA-30, Michelangelo Series homogenizer comes with options that would better suit the needed requirements for certain applications;

  • Second stage homogenizing group
  • Forged multi-block made of Super Duplex, SAF2507
  • Aseptic execution;
    • Sterile water generator by means of condensed steam generator
    • Patent pending sterile water generator by means of microfiltration
  • Design suitable with 3A, EHEDG or PHARMA
  • Standard or Sharp Edge Homogenizing valve with different geometries, materials availability;
    • Tungsten Carbide
    • Zirconia Oxide
  • Seat valve made of Tungsten Carbide
  • Vibration and temperature monitoring alarm
  • Pumping plunger availability;
    • HVOF chromium carbide jet coat treatment
    • AL203, Integral Ceramics
  • Electric Power Board
  • Explosion proof design
  • Soundproof design
Plunger Number 3
Stroke (mm)  50
Weight (kg)  550
Water Consumption (l/h) 150
Lubrication Oil Quantity (kg) (SAE 85W-90) 4
Air & Water Inlet ½” female
Water Discharge  ½” female
Product Inlet/Outlet  Socket Weld Flange e Øe40 Øi37 / Øe29 Øi22
