Ampliflow T-Boost Compressor Seals and Systems provide advanced sealing solutions for oil and gas applications.

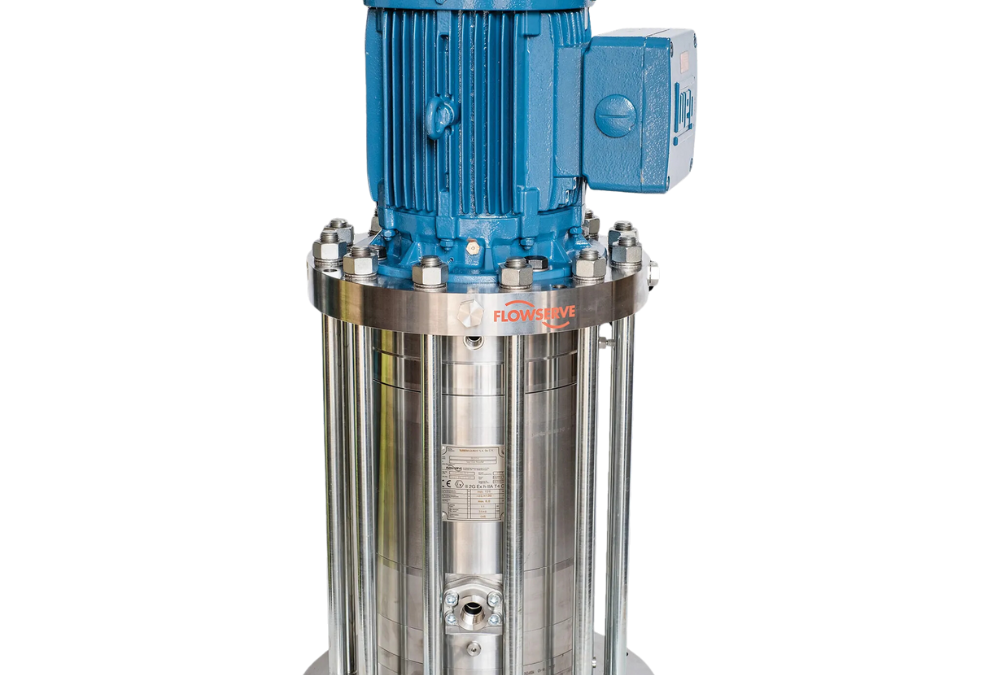

Ampliflow T-Boost Compressor Seals and Systems

The key to success for centrifugal compressors equipped with dry gas seals is a constant supply of clean seal gas. Their claimed dependability rates are excellent. The electrically driven Flowserve Ampliflow T-Boost seals gas booster improves operational dependability by always providing seal gas during low differential pressure periods.

Ampliflow T-Boost Compressor Seals and Systems Oil and Gas Applications

Benefit

  1. Provides seal gas during periods of low available differential pressure, allowing for indefinite pressured protection of the dry gas seal and boosting compressor uptime.
  2. Increased energy efficiency avoids eddy current losses and lowers operating expenses.
  3. Hermetically safe design ensures that no gas leaks through boundaries.
  4. The high-pressure containment shell around the magnetic coupling can tolerate any pressure situation, including MAWP.
  5. Minimum wearing parts decrease maintenance requirements when compared to competitor designs, allowing for an MTBR of 24,000 working hours.
  6. Simple to set up and integrate with existing dry gas seal support systems.
  7. Retrofit/upgrade option with pneumatic-driven piston boosters to increase dependability and application range.
  8. An innovative drive system with an intelligent motor controller delivers the appropriate flow and pressure across a variable compressor operating window.
  9. One or two impeller designs are feasible to suit application requirements.

Specification

Standards

  • Standard area classification: NEC Class 1, ATEX Zone 1

Operating Parameters

  • Gas media: H2 to CO2
  • Electric motor: 5.5 to 18 kW variable frequency driven

Pressure Class Range

  • Maximum allowable working pressure: up to 350 bar (5000 psi) @ -20°C to 180°C (-4°F to 356°F)

Materials

  • Metal components: stainless steel
  • Containment shell: ceramic
  • Elastomers: FKM, others

Size Range

  • Dimensions: 544 dia. x 1222 mm length (21 x 48 in)
  • Connections: threaded, flange
  • Certifications: NACE, others upon request

Related Industries

  • Oil & Gas
    • Midstream Transportation, Downstream Processing
