PlusClean UltraPure

Allow the Alfa Laval PlusClean Ultra Pure cleaning technology to transform tank cleaning in your aseptic and sterile processes. When used with your top-mounted tank cleaning equipment, the PlusClean Ultra Pure glides gently into the tank wall or bottom. When activated during Cleaning-in-Place (CIP), it ensures 100% impact cleaning coverage, up to 80% savings in water and cleaning media costs, and zero contamination by striking shadow areas with a pressurized cleaning media fan.

Eliminate the danger of tank contamination while increasing sterile and aseptic process productivity with the easy-to-install Alfa Laval PlusClean Ultra Pure cleaning system. The PlusClean Ultra Pure uses an optimized, high-impact spray pattern to deliver 100% cleaning coverage in shadow areas that is, behind agitator blades, coils, and connections that top-mounted tank cleaning devices neglect. The PlusClean Ultra Pure includes the Alfa Laval Q-doc documentation package, ensuring complete traceability throughout the supply chain. Faster, safer contaminant-free changeovers are now possible, resulting in increased batch or continuous process output in the pharmaceutical and biotech industries. While lowering the overall cost of ownership, this increases product yield and accelerates the ROI.

Enhance product integrity and achieve superior production with unparalleled 100% tank cleaning coverage.

1. Get full covering for impact cleaning.
2. Up to 80% less water and cleaning chemical utilized
3. Remove the risk of product contamination and boost product production.
4. Discover the requirements for sterile and aseptic processes in the biotechnology and pharmaceutical industries.
5. The total cost of ownership is reduced because to the low maintenance requirements and decreased water, cleaning media, and wastewater expenses.

Industries:

Biotechnology, Dairy processing and Pharmaceutical Production

Highly adaptable

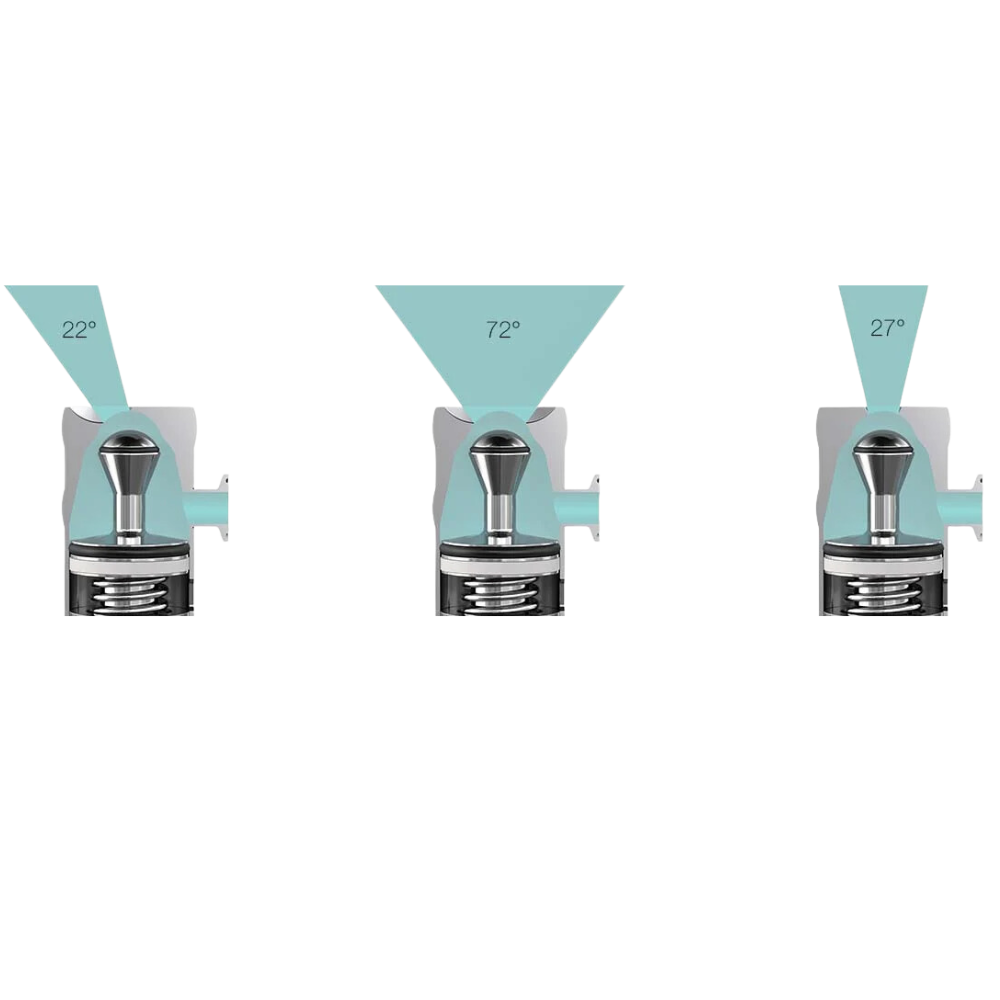

The PlusClean UltraPure is ideal for biotechnology and pharmaceutical applications, enhancing the cleaning efficacy of the primary cleaning apparatus, whether it be a static spray ball, rotary spray head, or rotary jet head. Based on the tank’s general design, the cleaning apparatus can be positioned either on the tank wall or the bottom. Select one of three distinct spray patterns and one of two various weld plates for attachment to tailor your cleaning equipment to your specifications.

Exclusive product line
Alongside the normal PlusClean UltraPure featuring a piston actuated by the cleaning material, a specialised pneumatic variant is offered. The pneumatic variant engages the piston using regulated air pressure. When utilised in conjunction with the Alfa Laval ThinkTop, you obtain a comprehensive picture of your tank cleaning operation, encompassing feedback signals such as open/closed status and purging options.

Assistance
Rely on enhanced equipment performance and increased uptime attributed to low-wear components that may be easily replaced on-site, hence reducing downtime. The PlusClean UltraPure cleaning apparatus contains no moving components that extend into or withdraw from the tank. Robust and dependable authentic components from Alfa Laval provide exceptional performance, reduce your total cost of ownership, and maintain the value of your equipment during its full lifecycle.

Install Alfa Laval PlusClean Ultra Pure cleaning equipment flush with the tank’s wall or bottom. When triggered by the cleaning media or controlled air pressure, the device generates a high impact force and sprays the cleaning media in a fan pattern directly into the polluted region. Cleaning coverage is guaranteed by the agitator blade and the shaft’s regulated, repetitive rotation.

After the cleaning cycle is complete, the integrated spring mechanism safely closes and seals the cleaning device by returning the piston to its normal position. Use the actuator whenever purging is required.
