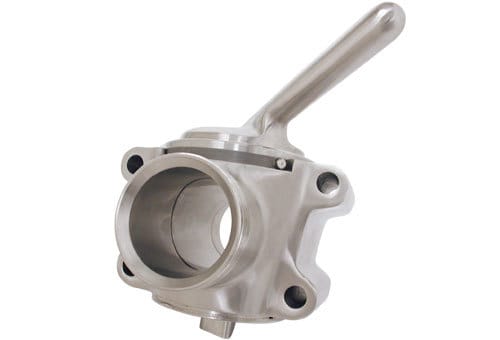

D10/D11 PLUG VALVES
The D10 and D11 plug valves from Alfa Laval are the classics of dairy valves. The bonded rubber or stainless steel plug valves are used in food and chemical industries and in other installations where a sanitary closing device with minimum pressure drop is required.
D10 and D11 plug valves are designed for quick and easy operation. The D10 is a two-way valve, and the D11 is a three-way.
Models
- D10
- D11
- D10F
- D10FL
Related Industries:
Processed Foods, Dairy, Beverages, Home & Personal Care, Chemical
STANDARD DESIGN
The D10 and D11 plug valves are made of 304 stainless steel. They have a strong, rigid body made from drop forged homogeneous material, and the plug is rubber coated. An optional chrome-plated and lapped metal plug is available.
The plug valves may be supplied with weld, bevel seat, or Tri-Clamp® connections.
MATERIALS
| Steel Parts | 304 |
| Finish | ? 32 Ra |
| Rubber Parts | Buna (N) |
TECHNICAL DATA
| Max Working Pressure (68°F) | 25 psi |
| Max Test Pressure (68°F) | 25 psi |
| Max Temperature | 100°F |
| Min Temperature | -4°F |
DIMENSIONS
TRI-CLAMP CONNECTIONS
| Tube OD(in) | A(in) | B(in) | C(in) | D(in) | E(in) | Approx. Weight(lb) |
|---|---|---|---|---|---|---|
| 1 1/2 | 2 29/32 | 5 13/16 | 7 | 5 5/8 | 2 1/2 | 9.50 |
| 2 | 3 13/32 | 6 13/16 | 7 5/8 | 5 5/8 | 2 7/8 | 15.50 |
| 2 1/2 | 4 1/8 | 8 1/4 | 8 3/4 | 6 1/4 | 3 1/2 | 25.50 |
| 3 | 4 23/32 | 9 7/16 | 9 3/4 | 7 1/4 | 3 3/4 | 36.00 |
WELD CONNECTIONS
| Tube OD(in) | A(in) | B(in) | C(in) | D(in) | E(in) | Approx. Weight(lb) |
|---|---|---|---|---|---|---|
| 1 1/2 | 2 23/32 | 5 7/16 | 6 7/8 | 5 5/8 | 2 1/2 | 9.50 |
| 2 | 3 3/16 | 6 3/8 | 7 5/8 | 5 5/8 | 2 7/8 | 15.50 |
| 2 1/2 | 4 7/8 | 7 3/4 | 8 5/8 | 6 1/4 | 3 1/2 | 25.50 |
| 3 | 4 15/32 | 8 15/16 | 9 3/4 | 7 1/4 | 3 3/4 | 36.00 |
BEVEL SEAT CONNECTIONS
| Tube OD(in) | A(in) | B(in) | C(in) | D(in) | E(in) | Approx. Weight(lb) |
|---|---|---|---|---|---|---|
| 1 1/2 | 2 29/32 | 5 13/16 | 6 7/8 | 5 5/8 | 2 1/2 | 9.50 |
| 2 | 3 13/32 | 6 13/16 | 7 5/8 | 5 5/8 | 2 7/8 | 15.50 |
| 2 1/2 | 4 1/8 | 8 1/4 | 8 5/8 | 6 1/4 | 3 1/2 | 25.50 |
| 3 | 4 23/32 | 9 7/16 | 9 3/4 | 7 1/4 | 3 3/4 | 36.00 |
D10F AND D10FL
| Tube OD(in) | A(in) | B(in) | C(in) | D(in) | E(in) | F(in) | G(in) | H(in) | I(in) | J(in) | K(in) | Hole Size(in) | Approx. Weight(lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 4 5/16 | 3 1/8 | 5 5/8 | 2 3/8 | 6 3/4 | 1 23/32 | 3 7/16 | – | – | – | – | 9/16 | 9.50 |
| 2 | 5 7/16 | 4 1/8 | 5 5/8 | 2 3/4 | 7 1/2 | 2 1/8 | 4 1/4 | – | – | – | – | 9/16 | 15.50 |
| 2 1/2 | 6 3/4 | 4 5/8 | 6 1/4 | 3 1/2 | 8 3/4 | 2 5/8 | 5 1/4 | 1 5/16 | 1 1/2 | 2 1/2 | 5 | 9/16 | 25.50 |
| 3 | 8 | 4 3/4 | 7 1/4 | 3 3/4 | 9 3/4 | 3 5/16 | 6 5/8 | 1 3/4 | 1 3/4 | 2 13/16 | 5 5/8 | 11/16 | 36.00 |
