The full-flow body design of Alfa Laval’s Ball Valves enable the product to pass through the valve with no restrictions and with a minimal pressure drop. The basic design allows cleaning and product recovery using pigging systems, and they are ideal for use with viscous liquids and liquids containing solid or semi-solid particles. Alfa Laval ball valves for hygienic use bear the Alfa Laval SBV and Alfa Laval Tri-Clover® designations.

Alfa Laval Valve Automations: Indication Unit, IndiTop, ThinkTop, ThinkTop Basic, ThinkTop D30, GreenTop

DescriptionFeaturesHow It WorksDetailsDocumentation

5308/5309 Series Ball Valve

Alfa Laval 5308/5309 Series Ball Valves are designed for use as a product valve, and are available with pneumatic actuators or manually-operated handles. Ideal for applications that involve high operating pressure and temperatures as well as where the use of pigging systems is required.

These ball valves are dependable and versatile valves, ideal for applications which require a full-flow body design to minimize line turbulence and pressure drop. They are also known for their reliability and easy maintenance, and they are an economical drop-in replacement for the Tri-Clover 4300 series.

The 5308 (Tri-Clamp® connections) and 5309 (butt weld connections) valves are available in seven sizes, with pneumatic actuators or manually operated handles. An optional encapsulated seat reduces the risk of product entrapment.

MODELS

  • 5308
  • 5309

Related Industries:

Processed Foods, Beverages, Brewery, Home & Personal Care, Pharmaceutical, Biotech, Chemical

Reliable full-flow performance

Alfa Laval 5308/5309 Series Ball Valve are full-bore flow valves that provide on/off control with minimal pressure drop. The valve opening has a constant pipeline diameter, which enables fluids to flow freely through the valves when open. Flow restriction is comparable to that of a straight tube. This makes the valve suitable for:

  • Handling fluids that are viscous or contain solid, semi-solid or abrasive particles
  • Use wherever pigging of process lines is a major consideration
  • Applications that require gentle product treatment
  • CIP applications

Compact, simple ball valve design

Easy to build into most any process line, Alfa Laval 5308/5309 Series Ball Valve feature a straightforward floating ball design, which guarantees a tight seal and permits axial movement while preventing rotation. They are water hammer-safe and completely insensitive to pressure shocks in the pipelines.

Easy-to-maintain ball valves

The three-piece valve design with few moving parts enables easy access to all valve components, making maintenance quick and easy. Durable PTFE valve seats help prolong service intervals. No special tools required for maintenance.

Hygienic ball valve range

The Alfa Laval hygienic ball valve range consists of two standard valve models.

  • SBV with either manual handle or automated operation for applications that involve high operating pressures up to 16 bar and temperatures up to 150°C, and where the use of pigging systems is required.
  • Tri-Clover® ball valves for applications that require full flow with minimal flow turbulence and pressure drop. An optional encapsulated seat is available for applications where reducing the risk of potential product entrapment is important.

For more information, please refer to Documentation.

Construction

The Alfa Laval 5308/5309 Series Ball Valve consists of a valve body, two flanges, PTFE valve seats, ball, stem unit and a handle for manual operation. For quick and easy inspection and maintenance, the valve easily assembles and disassembles with welded-end flange screws.

Operating principle

A precision-made ball with a bore, or opening, is positioned inside the valve body between two flanges and two PTFE valve seats.

Options

  • Quarter-turn handle for manual operation
  • Fittings in accordance with required standard (ISO or DIN)
  • PTFE encapsulated valve seats
APPLICATIONS

5308/5309 Series ball valves are suited for a variety of applications. Sanitary ball valves are the go-to valve for applications like water, air, and ingredient lines, where reliability and ease of maintenance are priorities. The full-bore design is ideal for handling viscous fluids or fluids with solids or semi-solid particles while minimizing turbulence and pressure drop. A constant inner diameter allows for free fluid flow and even allows for the use of product recovery projectiles.

STANDARD DESIGN

The Tri-Clover 5308/5309 ball valve consists of a stainless steel body that houses a rotating ball. The rotating ball is sealed in the body with a PTFE seat that either partially or fully encapsulates the ball. The valve is activated by a stainless steel handle that opens and closes the valve through a quarter turn. The valve can also be operated by an optional ¼ turn pneumatic actuator. External thrust springs maintain constant pressure on the stem packing. The stem and packing design eliminate the possibility of the stem becoming dislodged or blown out.

The 5308/5309 valve is available in seven end connection sizes: ½, ¾, 1, 1½, 2, 3, and 4 inch. Both Tri-Clamp (model 5308) and butt weld (model 5309) connections are available.

ACTUATOR FUNCTION
  • Pneumatic air-to-air actuator
  • Pneumatic air-to-spring actuator
MATERIALS
Elastomers PTFE, encapsulated PTFE, reinforced (glass filled) PTFE seat, reinforced (glass filled) encapsulated PTFE seat
Valve Body 316L cast stainless steel
Handle 304
Ball & Stem 316L
Actuators Non-stainless, epoxy-coated aluminum alloy, stainless steel
Surface Finish (ID) 20 Ra
Actuator Bracket, Coupling, & Hardware 304
TORQUE VS. PRESSURE

Use the charts above to determine the amount of torque required to cycle the ball valve.

PRESSURE VS. TEMPERATURE

Alfa Laval 53085309 Series Ball Valves – Product Leaflet – ESE00169.pdf

In good hands – Everything you need close at hand – Brochure.pdf
Valves and automation for hygienic use – The complete line – Brochure.pdf
In good hands – Safeguarding hygienic applications – Brochure.pdf
Intellegient Reliability – Solutions for superior flow control – Brochure.pdf



DescriptionFeaturesHow It WorksDetailsDocumentation

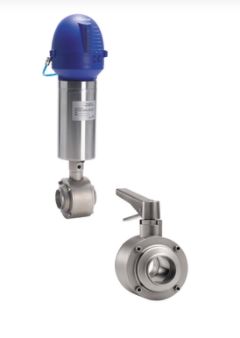

SBV Sanitary Ball Valve

Sanitary ball valves feature a full-bore design that enables full fluid flow with minimal pressure drop, making them ideal for handling viscous liquids or liquids containing particles in the food, beverage, chemical and pharmaceutical industries.

Related Industries:

Processed Foods, Beverages, Brewery, Home & Personal Care, Pharmaceutical, Biotech, Chemical





Reliable full-flow performance

Alfa Laval sanitary ball valves (SBVs) are full-bore flow valves that provide on/off control with minimal pressure drop. The valve opening has a constant pipeline diameter, which enables fluids to flow freely through the valves when open. Flow restriction is comparable to that of a straight tube. This makes the SBVs suitable for:

  • Handling fluids that are viscous or contain solid, semi-solid or abrasive particles
  • Use wherever pigging of process lines is a major consideration
  • Applications that require gentle product treatment
  • CIP applications

Automated or manual control

For versatility, Alfa Laval SBVs can be supplied for manual or automatic operation.

Manual operation: SBVs feature stainless steel quarter-turn handles to mechanically lock the valves in either open or closed position.

Automatic operation: SBVs use standard maintenance-free pneumatic actuators. Actuated ball valves are delivered as normally closed (NC) valves that are controlled from a remote location by means of compressed air. These, however, can easily be rebuilt to a normally open (NO) configuration. Actuators can be fitted with Alfa Laval ThinkTop valve sensing and control units. Optional inductive proximity sensor and mounting bracket are available.

Compact, simple ball valve design

Easy to build into most any process line, Alfa Laval SBVs feature a straightforward floating ball design, which guarantees a tight seal and permits axial movement while preventing rotation. They are water hammer-safe and completely insensitive to pressure shocks in the pipelines.

Spring-loaded, self-adjusting seal rings provide highly reliable valve stem sealing. SBVs with automated control have inspection holes in the bonnet for easy inspection of the stem seal.

Easy-to-maintain ball valves

The three-piece valve design with few moving parts enables easy access to all valve components, making maintenance quick and easy. Durable PTFE valve seats help prolong service intervals. No special tools required for maintenance.

Sanitary ball valve range

The Alfa Laval sanitary ball valve range consists of two standard valve models.

  • SBV with either manual handle or automated operation for applications that involve high operating pressures up to 16 bar and temperatures up to 150°C, and where the use of pigging systems is required.
  • Tri-Clover® ball valves for applications that require full flow with minimal flow turbulence and pressure drop. An optional encapsulated seat is available for applications where reducing the risk of potential product entrapment is important.

For more information, please refer to Documentation.



Construction

The Alfa Laval SBV sanitary ball valve consists of a valve body, two flanges, PTFE valve seats, ball, stem unit and either a handle for manual operation, or a bonnet and pneumatic actuator for automated operation. For quick and easy inspection and maintenance, the valve easily assembles and disassembles with welded-end flange screws.

Operating principle

A precision-made ball with a bore, or opening, is positioned inside the valve body between two flanges and two PTFE valve seats.

Options

  • Quarter-turn handle for manual operation or pneumatic actuator for automated operation
  • Bracket for mounting inductive proximity switches
  • ThinkTop® valve sensing and control unit
  • Fittings in accordance with required standard (ISO or DIN)
  • PTFE encapsulated valve seats
  • Valve seat cleaning connections
  • O-rings in NBR, Q (Silicone), FPM (Viton)

Concept

SBV is a hygienic ball valve designed for use as a product valve, in
applications within food, beverage, pharmaceutical and chemical
industries. The full bore design with zero flow restriction makes SBV
the optimum choice for viscous or particulate liquids.

Working principle

A precision made ball with a bore is positioned inside the valve body
between two flanges and two PTFE valve seats. A 90° rotation of the
valve stem is transferred to the ball and thereby opening or closing the
valve. A special selected PTFE material grade secures long lifetime of
the product wetted seals. Reliable valve stem sealing is achieved by
the use of spring loaded and self adjusting seal rings. SBV is operated
by a pneumatic actuator or manually operated by means of a handle
with lockable positions. The valve is assembled with screws for easy
inspection and maintenance.

Standard Design

The standard actuator is prepared for position indication with inductive
proximity switches. The actuator is maintenance free. Two inspection
holes in the bonnet connecting valve body and actuator allow for easy
inspection of the stem seal tightness. Actuated valves are delivered
NC (normally closed) and are easily rebuild to NO (normally open).

TECHNICAL DATA

Temperature

Temperature range: . . . . . . . . . . . . . 0°C to 130°C (EPDM)
However max. 95OC when operating the valve

Pressure

Max. product pressure: . . . . . . . . . . 1600 kPa (16 bar)
Min. product pressure: . . . . . . . . . . 0 bar

Actuator:

Operating pressure: . . . . . . . . . . . . 600 – 1000 kPa (6 – 10 bar)
Temperature range: . . . . . . . . . . . . . 4°C to +60°C
Air consumption actuator ø104: . . . . 0.5 Nl
Air consumption actuator ø129: . . . . 0.75 Nl
Max. recommended pressure during
activation: . . . . . . . . . . . . . . . . . . . 600 kPa (6 bar)

PHYSICAL DATA

Materials

Product wetted steel parts: . . . . . . . . 1.4404 (316L)
Other steel parts: . . . . . . . . . . . . . . 1.4307 (304)
External surface finish: . . . . . . . . . . . Semi-bright (blasted)
Internal surface finish: . . . . . . . . . . . Bright (polished), Ra < 0.8 µm
Product wetted seals: . . . . . . . . . . . EPDM
Other seals: . . . . . . . . . . . . . . . . . . NBR

Note!

If welding both flanges, ensure that the flanges can be moved axially 30-40 mm depending on size to allow for valve maintenance (see manual for further details).
Actuated valves are delivered NC (normally closed) and are easily rebuilt to NO (normally open). See manual for further details.

Options

A. Male parts or clamp liners in accordance with required standard.
B. Actuator for mounting of the Alfa Laval.: IndiTop, ThinkTop or ThinkTop Basic.
C. Cavity cleaning connections, (ISO 228 – 6 ½).
D. Cavity fillers (encapsulating valve seats).
E. Handle and bracket for inductive proximity switches (manual valves).
F. Product wetted elastomer seals of NBR, Q or FPM.

Alfa Laval SBV Ball Valve – ESE00292EN.pdf
Alfa Laval SBV Sanitary Ball Valve – Instruction Manual – ESE01782EN.pdf
DescriptionFeaturesDetailsHow It WorksDocumentation

BallValve_without TricloverBall Valve UltraPure

With a full-flow body design to minimize line turbulence and pressure drop, the Ball valve UltraPure features an encapsulated seat to protect against entrapment and contamination in biotech, pharmaceutical and personal care processes.

Related Industries:

Processed Foods, Beverages, Brewery, Home & Personal Care, Pharmaceutical, Biotech, Chemical

Ball valve UltraPure quality

The valve range consists of hygienic full-bore ball valves that combine reliable, full-flow performance and economical on/off control with minimal pressure drop.

With a straightforward, low-maintenance design, these valves consistently provide a high flow rate through an unobstructed flow path, making them the ball valve of choice for flow control in most hygienic fluid-handling systems.

For dairy, food and beverage, and high-pressure applications, Alfa Laval also offers the traditional Sanitary ball valve.

UltraPure ball valve design

The Ball valve UltraPure comes with several features that ensure dependable hygienic performance.

Advanced PTFE seal

Alfa Laval’s superior PTFE seal technology provides greater thermal stability, better chemical resistance and improved tensile strength.

Surface finishes

Ball valve UltraPure is available with Ra < 0.5µm surface finish to ensure cleanability and minimize contamination risks.

Weld ends and clamp ends

To meet hygienic welding requirements, Ball valve UltraPure features ASME BPE, ISO 2037 and Series A/DIN weld ends and ASME BPE clamp ends.

Standard encapsulated seat

The seat reduces the risk of potential product entrapment in applications where hygiene is critical.

Complete product range

The Ball valve UltraPure range comprises ASME BPE, DIN 11850 and ISO 2037 models in a full range of dimensions. The valves have a maximum operating temperature of 150°C and maximum operating pressure of 40 bar. The range is readily available with short delivery times.

High quality, well documented

Equipment and components in the  UltraPure portfolio are supplied with Alfa Laval Q-doc, a comprehensive documentation package that provides full transparency of the entire supply chain, from raw material to final equipment delivery. This smoothes purchasing and installation procedures as well as facilitates qualification, validation and change control procedures. Based on GDP (Good Documentation Practice), Alfa Laval Q-doc covers every aspect of UltraPure equipment supply and provides customers with transparent and well-documented quality assurance of the sourced equipment.

Concept

Ball Valve UltraPure is ideal for applications requiring a full flow body
design to minimize line turbulence and pressure drop. Seat with cavity
filler is standard offering for critical process applications requiring
minimum risk for product entrapment.

Standard Design

The Ball Valve UltraPure consists of a stainless steel body that houses
a rotating ball. The rotating ball is sealed in the body with a PTFE seat
that fully encapsulates the ball. The valve is activated by a stainless
steel handle that opens and closes the valve through a quarter turn.
External thrust springs maintain constant pressure on the stem seal.
The stem seal design eliminates the possibility of the stem becoming
dislodged or blown out.

TECHNICAL DATA

Temperature
Temperature range . . . . . . . . . . . . . -20°C to 150°C (EPDM)
Pressure
Max. product pressure: . . . . . . . . . . 400 kPa (40 bar)
Min. product pressure: . . . . . . . . . . Full vacuum
PHYSICAL DATA
Materials
Valve body . . . . . . . . . . . . . . . . . . CF3M (316L)
Ball & Stem . . . . . . . . . . . . . . . . . . 1.4401 (316L)
Handle . . . . . . . . . . . . . . . . . . . . . 1.4301 (304)
External surface finish . . . . . . . . . . . Semi-bright (blasted)
Internal surface finish . . . . . . . . . . . . Bright (polished), Ra ? 0.5 µm
Product wetted seals . . . . . . . . . . . . PTFE with cavity filler
Actuator surface . . . . . . . . . . . . . . . Epoxy coated

Construction

The valve consists of a 316L (CF3M9) steel valve body, PTFE valve seats, rotating ball, stem unit and stainless steel quarter-turn handle, stainless steel handle for manual operation, bushings for the disc stem and seal ring.

Operating principle

A precision-made rotating ball with a bore, or opening, is positioned inside the valve body between two flanges and two PTFE valve seats. To open or close the valve, manually rotate the handle by 90° to turn on or shut off the flow. External thrust springs maintain constant pressure on the stem seal. The robust design of the stem and seal eliminates misalignment and blowout.
