Worthington VSN Reciprocating Pump

The VSN is a vertical septuplex positive displacement reciprocating pump with extraordinarily high efficiency that is available in a variety of hydraulic, mechanical and material configurations.

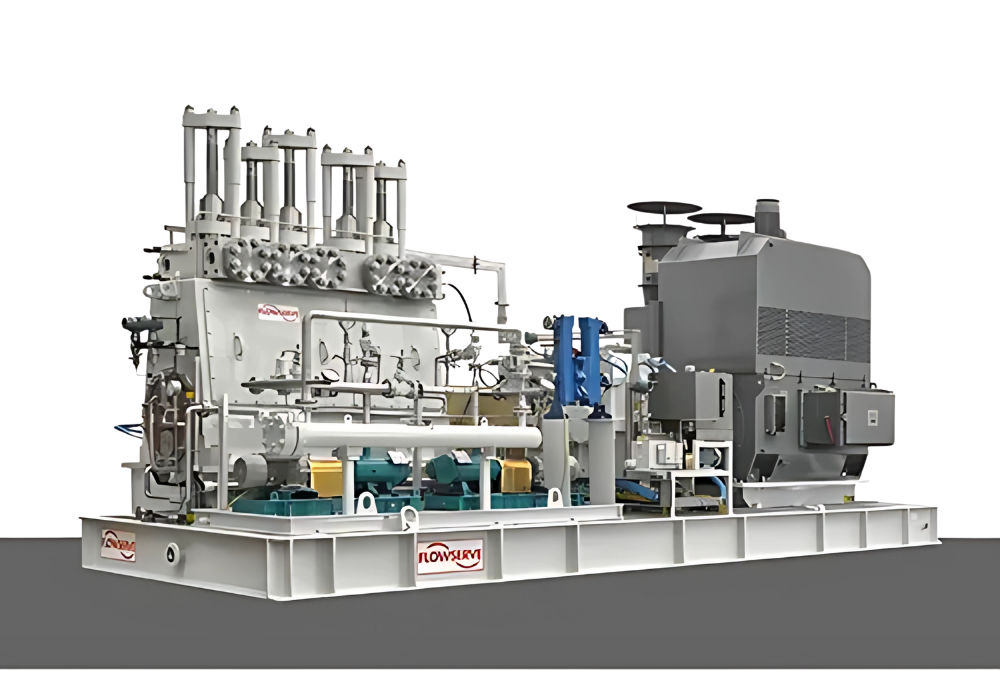

Worthington VSN reciprocating pump for industrial positive displacement applications

Benefit

• Monoblock liquid ends for oil and gas, among other industrial applications.
• Self-aligning plungers ensure proper concentricity within stuffing boxes.
• Different valve designs to handle all liquid types.
• Using stuffing boxes outside the cylinder to create more complex sealing and piping combinations.
• Individually secured stuffing boxes are fitted to the liquid cylinder for easy maintenance.
• The entirely enclosed power frame is resistant to dust and grease, preventing air pollution.
• Cylindrical crossheads and guides optimise the load-bearing surface and reduce wear, hence lowering replacement costs.
• Comprehensive pressure lubrication systems provide the protection and proper operation of all bearing surfaces.

Specification

Manufacturer standard

Flows to: 798 m3/h (3511 gpm)
Pressures to: 242 bar (3507 psi)
Temperatures to : 300 °C (572°F)

Size Range: 216 mm (8.50″) stroke, with 140 mm (5.51″) to 200 mm (7.87″) diameter plungers

Pressure Class Range: Pressures to 242 bar (3507psi)

Seating Material:

• Cylinder : Forged steel, Stainless Steel
• Plunger : 420SS, 420SS WC coated

Related Industries

1. Steel & Primary Metals
